Economical Type RT14 Fuse Holder

FOB Reference Price:Get Latest Price
US $0.23-0.25 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SLFC
Model Number:
RT14
Usage:
Low Voltage
Breaking Capacity:
High
Safety Standards:
IEC
Manufacturer history:
22 years
Parts-making:
Self-making
Color:
yellow or white
Ceritificates:
ISO9001,CCC,CE,TUV
Services:
OEM,ODM
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Inner : inner box,bigger inner box
Outer: Standard export carton
QTY : 10pcs/inner box,400pcs/carton
Carton dimension :43cm*40cm*25cm
Port
Ningbo,Shanghai,Shenzhen
Lead Time :
1-5 days after payment

Economical Type RT14 Fuse Holder



Product Description



1.  Application

    This series fuse is suitable for AC 50Hz, rated voltage to 600V, rated current to 125A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for rotecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). The rated breaking capacity is to 100KA. They conform to national standard GB13539 and international electrical committee standard IEC60269.



2.Construction Feature



    This series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.



3.Principle Technical Parameter





fuse base model

matched with fuse body measurement

rated vltage

(V)

rated current

(A)

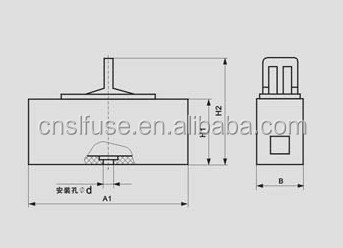

   overall dimension/size(mm)



A1

A2

B

H1

H2

Φd

RT14-20

10.3×38

380/500

20



69

-

20

30

47

5












Packaging & Shipping



Packaging details :

            Inner : inner box,bigger inner box
            Outer: Standard export carton
            QTY : 10pcs/inner box,400pcs/carton
            Carton dimension :43cm*40cm*25cm



Delivery details :

       1 - 3 days according to your quantity.

       Delivery by express or by sea based on your require.

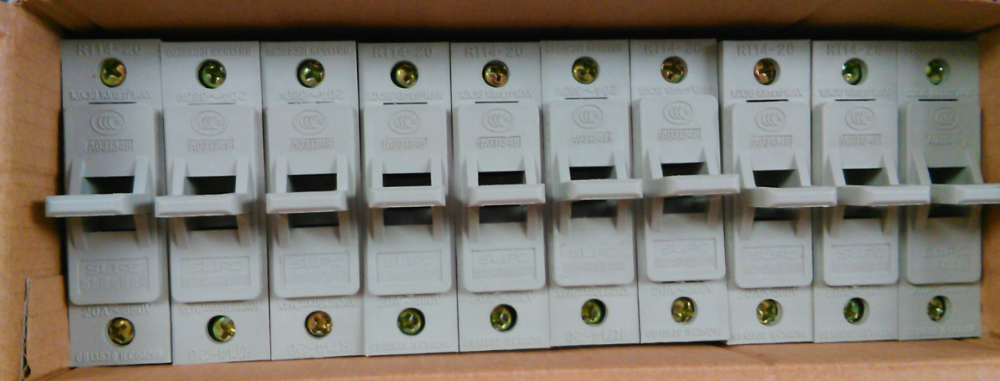

RT14-20package





Our Services



1.Your inquiry will be replied within 12hrs.

2.Design for special packing, Products printing and logo OEM.

3.Freight forwarder:faster,safer,and convenient.



Company Information

 WORKSHOP

workshop



 CERTIFICATES

certificate

 EXHIBITION

QQ20161013140932







FAQ

1.Do you have any experiences?

We export regular orders to Asia, Africa,Middle East, America,South America etc.

2.Can I get samples before order?

Sure, we offer  samples for quality check.

3.Can I customize some special product and make my logo on the product?

OEM and ODM are welcomed. We always focusing on customer service.

4.What are your payment terms?

Western Union, Ali Escrow, MoneyGram,T/T and L/C are available.

5.What certificates you have?

ISO9001.CE,TUV,RoHS etc.



Why DO You Choose Us?



1. Premium Quality for High Reliability

2. Competitive Price

3. Unique Design

4. Excellent Service

5. Solutions for Any Budget



 CONTACT US

Zhejiang Xinli Fuse Co.,LTD

Mr Kevin Dong (Manager)

Cell:0086 15267773846 ( whatsapp & wechat & viber )

Tel: 0086 577 61710887

Fax: 0086 577 62795588

Skype: shawn-tung

Web:   http://cnslfuse.com
