Bolt Connected Fast Speed RS711B Fuse

FOB Reference Price:Get Latest Price
US $1.09-1.29 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SLFC
Model Number:
RS711B
Usage:
Low Voltage
Breaking Capacity:
High
Safety Standards:
IEC
Manufacturer history:
22 years
Parts-making:
Self-making
Color:
yellow or white
Ceritificates:
ISO9001,CCC,CE,TUV
Services:
OEM,ODM
Packaging & Delivery
Packaging Details
Inner : Plastic bag and inner box
Outer: Standard export carton
QTY : 5pcs/inner box,150pcs/carton
Carton dimension :45cm*33cm*22cm
Port
Ningbo,Shanghai,Shenzhen
Lead Time :
3-5 days after payment

Bolt Connected Fast Speed RS711B Fuse

Product Description



1.  Application

    This series fuse is suitable for AC 50Hz, rated voltage to 1000V, rated current to 1250A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short circuit (aM). The rated breaking capacity is to 120KA. They conform to national standard GB13539 and international electrical committee standard IEC60269.

2.Construction Feature

    This series of fuse consists of fuse link, fuse base and carrier fuse. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the square fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate(or junction panel) and to form the square knife shape contact structure. The fuse may have fuse indicator or striker, when the fuse element fusing it can demonstrate fusing (indicator) or transforms each kind of signal as well as automatic transfer circuit (striker). The fuse base consists of high temperature resistance resin plate(or high intensity porcelain plate) and wedge-shaped static contact to form open-type structure and it can be used as the supporting device of the appropriate size of the fuse link. This series of fuse has many merits such as good in heat dissipation, high mechanical strength, reliable in contact, convenient in performance and so on.

3.  Principle Technical Parameter



fuse model



rated vltage

(V)



rated current

(A)

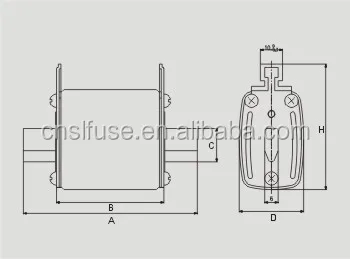

    overall dimension/size(mm)

common

(gG)

fast

(aR)



A

B

C

D

H

RT16-00

NT00 RT20-00

R031 NH00

RS31

NGTC00 3NE80

500/660

2~160



78.5

49

15

29

57





Packaging & Shipping



Packaging details :

        Inner : Plastic bag and inner box

        Outer: Standard export carton

        QTY : 5pcs/inner box,150pcs/carton

        Carton dimension :45cm*33cm*22cm



Delivery details :

       1 - 3 days according to your quantity.

       Delivery by express or by sea based on your require.
